                Many 2424AS CNC Router Machine





       Option ATC System         ISO20 Tool Holder

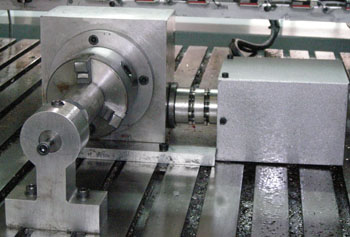

              Optional Rotate Axis




                 2432AS CNC (600 x 800 x 150 mm)

     2424AS Specification

 Table Size (mm)

 660 x 750
 Working Area (mm)  580 x 600 x 250
 Machine Size (mm)  1300 x 1450 x 1350
 Table Surface  T-Slot Casting Iron
 Control Type DC Servo Closed Loop Control
 Drive System  XYZ axis: Ball Linear; Ball Screw
 Max Speed   10000mm/min
 Spindle Motor   1.5kw water cooling spindle with inverter 24,000 rpm

 (Optional powerful spindle)

 Max Tool Shaft Diameter  10 mm
 Position Accuracy  +/- 0.018mm
 Resolution  0.0045mm
 Power  Requirements  220V 50-60Hz
 Machining Material  Wood, Plastic, Acrylic, Aluminum, Brass, Magnesium...
 Software  EasyCut  Software
 Support File  G M code file (iso, tap, nc, cnc...)

 DXF file, PLT file

 System Requirements  Windows  2000/ XP/Vista
